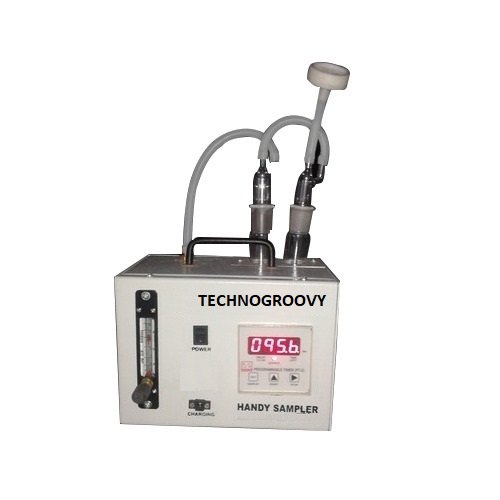

Handy Sampler


Handy Sampler
Application:
Technogroovy Handy Sampler is used to estimate workplace pollution. Appropriate dust sampling uses wet chemical methods for sampling gaseous toxins. It can be used to sample various pollutants, including sulfur, nitrogen oxides, halogen, ammonia, sulfides, etc. The particle sample head provided with the system will be useful for monitoring particles such as silica, cement dust, metal smoke and asbestos fibers. Etc., in the fields of cement factories, foundries, etc.
Operating Principle:

The system uses a small battery-powered pump which is fully contained in ginger to draw air to a suitable absorption solution. If necessary, two motors in a chain can be used to control 2 gaseous pollutants. An additional rule for identifying suspended particles in the same practice is by using an open sample head that carries a filter with a diameter of 25 mm. To ensure complete absorption and reduce the absorption loss of evaporation, the sample ginger tubes are placed in an ice tray. Rechargeable batteries are used with enough storage space to run the system for a full 8 hours, making it easy to compare workers' doses with TLV levels.
Features:
·               Battery-powered pump for 8 hours.
·               Rechargeable battery without maintenance.
·               Providing the system to work outside the main network as well.
·               Digital timer for easy operation without assistance

Specifications:
·               Suction Pump  Built-in / Rotary vane type.
·               Sampling Rate 0.5 - 1 LPM
·               Rotameter 0 – 3 LPM with Needle Valves to control flow
·               Timer  : 3 digit display in minutes; with provision of display of total run time & delay time
·               Battery :  Rechargeable maintenance free battery
·               Running Time : 1 – 999 Min
·               Delay Time : 1 – 99 Min.
·               Power Supply  : 220V (+/-) 10V AC, 50Hz with Battery charger and Rechargeable batteries (4AH).
·               Operation Time : 10 hours with full charge
·               Charge time : 15 hours or less
·               Sampling Train Housing  : Consisting of 2 nos., 35 ml glass impingers kept in ice tray connected with inert Silicone tubing
