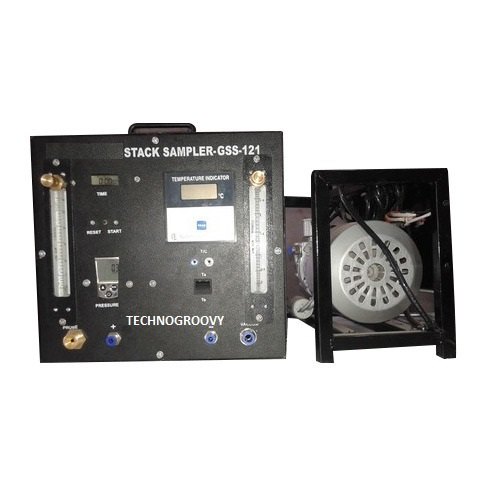

Technogroovy Stack Monitoring Kit


Stack Monitoring  Kit:
Application:


Technogroovy Stack Monitoring Kit is a cost-effective routine stack sample monitoring system designed to monitor pollutant concentrations in industrial emissions. Repetition and repeated monitoring can only give a real idea of emission characteristics, and therefore pollution control panels now emphasize emission data that will be repeatedly collected in more than one or two accurate setting values across the country, so the most important thing is a simple device And easy. It is often used easily and comfortably in place of a heavy and stressful system.
Operating Principle:The principle of operation is simple: it intertwines and absorbs different gaseous pollutants, such as SO2, NO2, HF, Cl2, H2S, NH3, etc., in the appropriate reagents, which are later used by simple hydration methods to determine concentrations of specific pollutants. The analysis was done. Usual granulation material is collected in filter thimble.

Technical Specification :

•            Particulate Sampling :  2-30 LPM collection on thimble type of filter upto 0.3 micron rating
•            Gaseous Sampling   :  0.2-3 LPM oolleetion in a set of Borosillicate glass impingers
•            Rotameter     :  Plasiic body rotameter with 2% FSD accuracy, 0-30 LPM for particulates and 0-3 LPM for gases
•            Sampling Probe  :  Made from SS 304 tube, 1.0m and 0.3m in length (1.5m, 2m, 4m available at extra cost)
•            Filter Holder  :   Fabricated from SS 304 tube, 1.0m and 0.3m in length(1.5m, 2m, 4m available at extra cost )
•            Nozzles  :  A set of 3 stainless steel nozzles
•            DigitalClock  :  0-60 minutes, 1 second readout
•            Sampling Train  : 2 No. of 240 ml capacity and 3 No. of 120ml capacity borosilcate glass impingers with Ball socket joints accommadated in ice tray, placed in the rear of instrument panel with a provision to keep ice.
•            VacuumPump   :  Monoblock Rotary Vane type, oil lubricated, 0.5 HP single phase motor (230V) with more than 50 LPM free flow capacity
•            Drygas Meter   : Diaphragm type, 1 ltr least coun

List Of Components:

Probe pipe, fiter holder, inter connection hose pipes, nozzels, instruments panel with fibre cover, consisting of stop watch rotameters, ice trayconsisting of glass impingers, Vacuum pump assembly, Dry gas meter etc



Thanks & Regards
 (Technogroovy)
Mail Id: technogroovy@gmail.com
Mob: +91-8218470498,+91-8860277055
